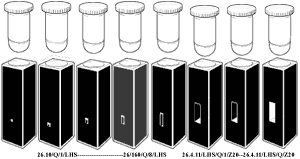

Starna® Sub-micro low head space (LHS) cells
 |
|
||||||||||||||||
Q
= Fernes UV Quarz 170 - 2700nm
Cell top round
internal solid black top closed by a specialy profiled PTFE stopper,
designed to reducethe volume of air above th esample by >95% thus reducing loss due to evaporation |
Usage note Filling
and empting with a pipette is recomended |
To avoid possible meniscus errors; it may be necessary to increase the nominal sample volume by at least 20% |
| Starna Typ |
Glas- material |
"Z" Height |
Schicht- dicke |
External | sample chamber | Nom Vol |
|||
| Width | length | Height | Width | Height | |||||
| Nr | erhältich in | mm | mm | mm | mm | mm | mm | mm | ml |
| 26.10/LHS | Q | 8.5,15,20 | 10 | 12.5 | 12.5 | 45 | 1 | 1 | 0.010 |
| 26.40/LHS | Q | 8.5,15,20 | 10 | 12.5 | 12.5 | 45 | 2 | 2 | 0.040 |
| 26.4.2/LHS | Q | 8.5,15,20 | 10 | 12.5 | 12.5 | 45 | 4 | 2 | 0.080 |
| 26.50/LHS | Q | 8.5,15,20 | 10 | 12.5 | 12.5 | 45 | 2 | 2.5 | 0.050 |
| 26.100/LHS | Q | 8.5,15,20 | 10 | 12.5 | 12.5 | 45 | 2 | 5 | 0.100 |
| 26.160/LHS | Q | 8.5,15,20 | 10 | 12.5 | 12.5 | 45 | 2 | 8 | 0.160 |
| 26.4.11/LHS | Q | 20 | 1 | 12.5 | 12.5 | 45 | 4 | 11 | 44.000 |
| 26.4.11/LHS | Q | 20 | 5 | 12.5 | 12.5 | 45 | 4 | 11 | 220.000 |
| 26.4.11/LHS | Q | 20 | 10 | 12.5 | 12.5 | 45 | 4 | 11 | 440.000 |
