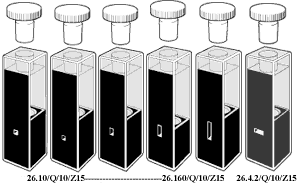

Starna® Sub-micro and Ultra-micro with stopper
Sub-micro and Ultra-micro with stopper
Fernes UV Quarz Q = Fernes UV Quarz 170 - 2700nm

Pathlength 10 mm
Sealed by PTFE stopper providing a liquid tight seal
Filling and empting with a pipette is recomended
Reduced nominal volume from 10 µl to 160 µl.


Z-Abmenssunger Angebotsanfrage
To avoid possible meniscus errors; it may be necessary to increase the nominal sample volume by at least 20%.
Starna
Typ		 Glas-
material 		"Z"
Height 		Schicht-
dicke		 External sample chamber Nom
Vol
Width length Height Width Height
Nr erhältich in mm mm mm mm mm mm mm ml
No choice mm mm mm mm mm mm mm ml
26.10 Q 8.5,15,20 10 12.5 12.5 48 1 1 0.010
26.40 Q 8.5,15,20 10 12.5 12.5 48 2 2 0.040
26.4.2 Q 8.5,15,20 10 12.5 12.5 48 ? ? 0.080
26.50 Q 8.5,15,20 10 12.5 12.5 48 2 2.5 0.050
26.100 Q 8.5,15,20 10 12.5 12.5 48 2 5 0.100
26.160 Q 8.5,15,20 10 12.5 12.5 48 2 8 0.160
