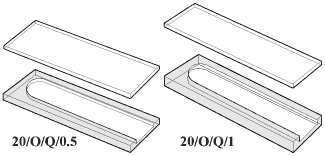

Starna® Demountable, open ended
 |
|
||||||||||||||||||||||||
G
= Optisches Glas 334 - 2500nm
SOG
= Optisches Spezialglas 320 - 2500nm
PX = Borofloat 330 - 2500nm
H =
UV Silica 220 - 2500nm
Q
= Fernes UV Quarz 170 - 2700nm
I =
Nahes Infrarot Quarz 220 3800nm
SX
= Fernes UV - IR Quarz (wasserfrei) 170 - 3500nm
open
ended, with two polished windows
| Starna typ |
Glas- material |
Schicht- dicke |
Externe | SampleChamber | Nom Vol | ||||
| Weite | Länge | Höhe | Weite | Länge | Höhe | ||||
| Nr | erhältich in | mm | mm | mm | mm | mm | mm | mm | ml |
| 20/O | Q | 0.01 | 12.5 | 2.5 | 45 | 10 | 0.01 | 40 | 0.004 |
| 20/O | Q/I | 0.1 | 12.5 | 2.6 | 45 | 10 | 0.1 | 40 | 0.040 |
| 20/O | Q/I | 0.2 | 12.5 | 2.7 | 45 | 10 | 0.2 | 40 | 0.080 |
| 20/O | Q/I | 0.5 | 12.5 | 3.0 | 45 | 10 | 0.5 | 40 | 0.190 |
| 20/O | G/SOG/Q/I | 1 | 12.5 | 3.5 | 45 | 10 | 1 | 40 | 0.390 |
