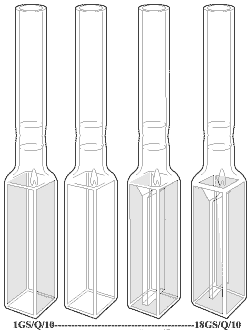

Starna® Rectangular with Quartz to Borofloat graded seal (GS)
 |
 |
||||||||||||||||||||||||||
G
= Optisches Glas 334 - 2500nm
SOG
= Optisches Spezialglas 320 - 2500nm
PX = Borofloat 330 - 2500nm
H =
UV Silica 220 - 2500nm
Q
= Fernes UV Quarz 170 - 2700nm
I =
Nahes Infrarot Quarz 220 3800nm
SX
= Fernes UV - IR Quarz (wasserfrei) 170 - 3500nm
Pathlengths
1, 2, 5, 10 mm| Starna Type |
Material Type |
Path Length |
Internal Width |
External | Tube | Nominal Volume |
Remarks | ||||
| Width | length | Height | I.D | O.D | Length | ||||||
| No | Available | mm | mm | mm | mm | mm | mm | mm | mm | ml | |
| 1/GS | Q/I | 1 | 10 | 12.5 | 3.5 | 115 | 8 | 10 | 70 | 0.400 | Macro |
| 1/GS | Q/I | 2 | 10 | 12.5 | 4.5 | 115 | 8 | 10 | 70 | 0.700 | Macro |
| 1/GS | Q/I | 5 | 10 | 12.5 | 7.5 | 115 | 8 | 10 | 70 | 1.700 | Macro |
| 1/GS | Q/I | 10 | 10 | 12.5 | 12.5 | 115 | 8 | 10 | 70 | 3.500 | Macro |
| 3/GS | Q/I | 10 | 10 | 12.5 | 12.5 | 115 | 8 | 10 | 70 | 3.500 | Fluorimeter |
| 9/GS | Q/I | 10 | 4 | 12.5 | 12.5 | 115 | 8 | 10 | 70 | 1.400 | Semi micro |
| 18/GS | Q/I | 10 | 2 | 12.5 | 12.5 | 115 | 8 | 10 | 70 | 0.700 | Micro |
