Starna® Anærobic Standard Rectangular & Fluorimeter
 |
|
||||||||||||||||||
SOG
= Optisches Spezialglas 320 - 2500nm
Q
= Fernes UV Quarz 170 - 2700nm
I =
Nahes Infrarot Quarz 220 3800nm

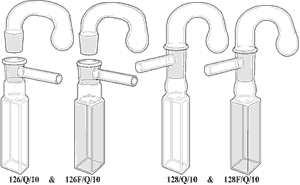

Type 126: Evacuation
tube 3mm I.D., 5mm O.D., 30mm Length |
Type 128: Evacuation
tube 4mm I.D., 6mm O.D., 30mm Length |
Note: Socket
assembly can be fused to other rectangular cells on request |
| Starna Typ |
Glas- material |
Schicht- dicke |
Externe | Interne | Nom Vol |
|||
| Weite | Länge | Höhe | Weite | Länge | ||||
| Nr | erhältich in | mm | mm | mm | mm | mm | ml | |
| 126 | SOG/Q/I | 2 | 12.5 | 4.5 | 70 | 10 | 2 | 0.700 |
| 126 | SOG/Q/I | 5 | 12.5 | 7.5 | 70 | 10 | 5 | 1.75 |
| 126 | SOG/Q/I | 10 | 12.5 | 12.5 | 70 | 10 | 10 | 3.500 |
| 126-F | SOG/Q/I | 2 | 12.5 | 4.5 | 70 | 10 | 2 | 0.700 |
| 126-F | SOG/Q/I | 5 | 12.5 | 7.5 | 70 | 10 | 5 | 1.75 |
| 126-F | SOG/Q/I | 10 | 12.5 | 12.5 | 70 | 10 | 10 | 3.500 |
| 128 | SOG/Q/I | 2 | 12.5 | 4.5 | 120 | 10 | 2 | 0.700 |
| 128 | SOG/Q/I | 5 | 12.5 | 7.5 | 120 | 10 | 5 | 1.75 |
| 128 | SOG/Q/I | 10 | 12.5 | 12.5 | 120 | 10 | 10 | 3.500 |
| 128-F | SOG/Q/I | 2 | 12.5 | 4.5 | 120 | 10 | 2 | 0.700 |
| 128-F | SOG/Q/I | 5 | 12.5 | 7.5 | 120 | 10 | 5 | 1.75 |
| 128-F | SOG/Q/I | 10 | 12.5 | 12.5 | 120 | 10 | 10 | 3.500 |
