Starna® Flow Cells, Type 76 HPLC round aperture
Optisches Spezialglas SOG = Special optical Glass 320 - 2500nm
Fernes UV Quarz Q = Far UV Quartz 170 - 2700nm

Pathlengths:10 mm
Available 'Z' 8.5 & 15 mm
Z 8.5 overall Height = 38.5 mm
Stainless Steel Tubes
Inlet Outlet Length
  I.D. O.D I.D. O.D.
76.1 0.25 1.6 0.5 1.6 100
76.15 1.0 1.6 1.0 1.6 100
76.2 1.0 1.6 1.0 1.6 100
76.3 1.0 1.6 1.0 1.6 100
Z-Abmessungen Angebotsanfrage

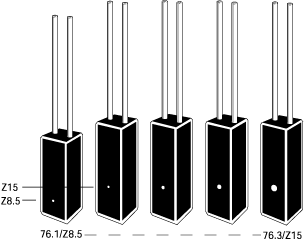

"Z" dimension is critical as the cell sample compartment must be correctly aligned in the instrument light beam, see chart below
Connections: Stainless steel tubulations, permanently fused to the top of the cell, allow for simple and secure connections

Starna
Catalog 		Path Length Exterior Sample Chamber 'Z' Dimension Nominal Volume Number Polished
Width Length Height Width Length
Number mm mm mm mm mm mm mm ml Windows
76.15/SS/SOG 10 12.5 12.5 38.5/45 1.5 10 8.5 & 15 0.018 2
76.2/SS/SOG 10 12.5 12.5 38.5/45 2 10 8.5 & 15 0.040 2
76.3/SS/SOG 10 12.5 12.5 38.5/45 3 10 8.5 & 15 0.080 2
Starna
Catalog 		Path Length Exterior Sample Chamber 'Z' Dimension Nominal Volume Number Polished
Width Length Height Width Height
Number mm mm mm mm mm mm mm ml Windows
76.1/SS/Q 10 12.5 12.5 38.5/45 1 10 8.5 & 15 0.008 2
76.15/SS/Q 10 12.5 12.5 38.5/45 1.5 10 8.5 & 15 0.018 2
76.2/SS/Q 10 12.5 12.5 38.5/45 2 10 8.5 & 15 0.040 2
76.3/SS/Q 10 12.5 12.5 38.5/45 3 10 8.5 & 15 0.080 2
