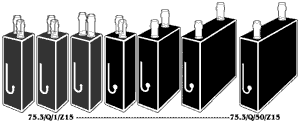

Starna® Durchflußküvetten, Type 75.3 round aperture
 |
|
||||||||||||||
SOG = Optisches Spezialglas
320 - 2500nm
Q = Fernes UV Quarz 170 - 2700nm
SX = Fernes UV - IR Quarz (wasserfrei)
170 - 3500nm
Fully masked cell with round aperture, Bore specially treated to reduce
bubble formation |
Pathlengths 1, 2, 5, 10, 20, 40, 50, 100mm
Available 'Z' 8.5,& 15 mm |
Designed for use in spectrophotometers with a small collimated
or focused beam |
"Z"
dimension is critical as the cell sample compartment must be correctly
aligned in the instrument light beam, see chart below |
Connections:Tubulations
intended for push on flexible tubeing |
| Starna Typ | Material |
Schicht-dicke | Externe | Sample Chamber | 'Z' Dimension |
Nominal Volume |
|||
| Weite | Länge | Höhe | Durchm. | Länge | |||||
| Nr | Choice | mm | mm | mm | mm | mm | mm | mm | ml |
| 75.3 | SOG/Q | 1 | 12.5 | 12.5 | 38.5 | 3 | 1 | 8.5, 15 | 0.007 |
| 75.3 | SOG/Q | 2 | 12.5 | 12.5 | 38.5 | 3 | 2 | 8.5, 15 | 0.014 |
| 75.3 | SOG/Q | 5 | 12.5 | 12.5 | 38.5 | 3 | 5 | 8.5, 15 | 0.035 |
| 75.3 | SOG/Q/SX | 10 | 12.5 | 12.5 | 38.5 | 3 | 10 | 8.5, 15 | 0.070 |
| 75.3/TC | Q | 10 | 12.5 | 12.5 | 38.5 | 3 | 10 | 15, 20 | 0.070 |
| 75.3 | SOG/Q | 20 | 12.5 | 22.5 | 38.5 | 3 | 20 | 8.5, 15 | 0.140 |
| 75.3 | SOG/Q | 40 | 12.5 | 42.5 | 38.5 | 3 | 40 | 8.5, 15 | 0.280 |
| 75.3 | SOG/Q | 50 | 12.5 | 52.5 | 38.5 | 3 | 50 | 8.5, 15 | 0.350 |
| 75.3 | SOG/Q | 100 | 12.5 | 102.5 | 38.5 | 3 | 100 | 8.5, 15 | 0.700 |
