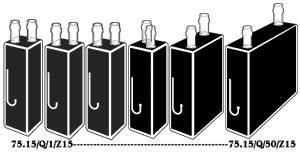

Starna® Durchflußküvetten, Type 75 sub micro round aperture
 |
|
||||||||||||||||
SOG = Optisches Spezialglas
320 - 2500nm
Q = Fernes UV Quarz 170 - 2700nm
SX = Fernes UV - IR Quarz (wasserfrei)
170 - 3500nm
Fully masked cell
with round aperture, dimensions see charts below, optimized for the
best flow characteristics for instruments with
a narrow beam geometry |
Designed for spectrophotometers
with a small collimated or focused beam |
"Z" dimension
is critical as the cell sample compartment must be correctly aligned
in the instrument light beam,
see chart below |
Connections:Tubulations
intended for push on flexible tubeing |
| Starna Typ |
Material Choice | Schicht -dicke |
Externe | Sample Chamber | 'Z' Dimension | Nominal Volume | |||
| Weite | Länge | Höhe | Diameter | Länge | |||||
| Nr | mm | mm | mm | mm | mm | mm | mm | ml | |
| 75.1 | SOG/Q/SX | 5 | 12.5 | 12.5 | 38.5 | 1 | 5 | 8.5 | 0.004 |
| 75.1 | SOG/Q/SX | 10 | 12.5 | 12.5 | 38.5 | 1 | 10 | 8.5 | 0.008 |
| 75.1 | SOG/Q/SX | 5 | 12.5 | 12.5 | 45 | 1 | 10 | 15 | 0.004 |
| 75.1 | SOG/Q/SX | 10 | 12.5 | 12.5 | 45 | 1 | 10 | 15 | 0.008 |
| 75.15 | SOG/Q/SX | 1 | 12.5 | 12.5 | 38.5 | 1.5 | 10 | 8.5 | 0.002 |
| 75.15 | SOG/Q/SX | 2 | 12.5 | 12.5 | 38.5 | 1.5 | 10 | 8.5 | 0.004 |
| 75.15 | SOG/Q/SX | 5 | 12.5 | 12.5 | 38.5 | 1.5 | 10 | 8.5 | 0.009 |
| 75.15 | SOG/Q/SX | 10 | 12.5 | 12.5 | 38.5 | 1.5 | 10 | 8.5 | 0.018 |
| 75.15 | SOG/Q/SX | 20 | 20 | 12.5 | 38.5 | 1.5 | 10 | 8.5 | 0.036 |
| 75.15 | SOG/Q/SX | 50 | 50 | 12.5 | 38.5 | 1.5 | 10 | 8.5 | 0.090 |
| 75.15 | SOG/Q/SX | 1 | 12.5 | 12.5 | 45 | 1.5 | 10 | 15 | 0.002 |
| 75.15 | SOG/Q/SX | 2 | 12.5 | 12.5 | 45 | 1.5 | 10 | 15 | 0.004 |
| 75.15 | SOG/Q/SX | 5 | 12.5 | 12.5 | 45 | 1.5 | 10 | 15 | 0.009 |
| 75.15 | SOG/Q/SX | 10 | 12.5 | 12.5 | 45 | 1.5 | 10 | 15 | 0.018 |
| 75.15 | SOG/Q/SX | 20 | 20 | 12.5 | 45 | 1.5 | 10 | 15 | 0.036 |
| 75.15 | SOG/Q/SX | 50 | 50 | 12.5 | 45 | 1.5 | 10 | 15 | 0.090 |
