Q = Fernes UV Quarz 170 - 2700nm |
| |
Path lengths 0.1, 0.2, 0.5, 1, 2 mm |
|
2 Clear windows |
|
Available 'Z' 15mm |
|
Aperture 3.5
mm W x 17.5 mm H |
|

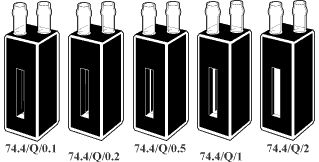

Fully masked cell with rectangular aperture, optimized for the
lowest volume. |
| |
|
 |
|
Glass or quartz tubulations
as appropriate, permanently fused to the top of the cell, allow for simple
and secure push on or sleeved connections using flexible tubing such
as silicone rubber or PVC
| Starna
Catalog
|
Path
Length
|
Exterior
|
Aperture
|
'Z'
|
Nominal
Volume
|
Number
Polished
|
| Width
|
Length
|
Height
|
Width
|
Height
|
Dimension
|
| Number
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
ml
|
Windows
|
| 74.4/Q
|
0.1
|
12.5
|
12.5
|
35
|
4
|
11
|
15
|
0.006
|
2
|
| 74.4/Q
|
0.2
|
12.5
|
12.5
|
35
|
4
|
11
|
15
|
0.088
|
2
|
| 74.4/Q
|
0.5
|
12.5
|
12.5
|
35
|
4
|
11
|
15
|
0.220
|
2
|
| 74.4/Q
|
1
|
12.5
|
12.5
|
35
|
4
|
11
|
15 |
0.440
|
2
|
| 74.4/Q
|
2
|
12.5
|
22.5
|
35
|
4
|
11
|
15
|
0.880
|
2
|
|
