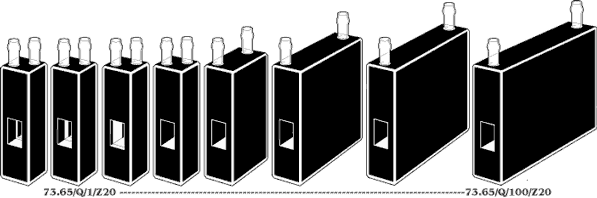

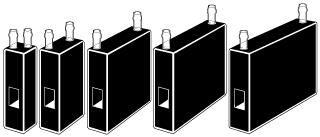

Starna® Durchflußküvetten, wide window, push-on tubes
 |
Q = Fernes UV Quarz 170 - 2700nm |
|
Clear windows:Two |
||
|
Z dimension 8.5, 15, 20 |
||
|
Pathlengths:1, 2, 5, 10, 20, 40, 50, 100mm |
||
|
Aperture dimensions:6.5mm wide x 11mm high |
||
 |
 |
|
|
Fully masked cell with rectangular aperture, other dimensions see
charts below, optimised for |
||
| the lowest volume for instruments with a wide beam geometry | ||
|
Usage note:"Z" dimension is critical as the cell compartment
must be correctly aligned in the |
||
| instrument. Cells with a Z dimension of 8.5 have an overall height of 38.5mm all others in this | ||
| section are 45mm | ||
|
Connections:Glass or quartz tubulations as appropriate, permanently
fused to the top of the cell, |
||
| allow for simple and secure push on or sleeved connections using flexible tubing such as silicone | ||
| rubber or PVC |
| Starna Typ |
Schicht -dicke |
Externe | Sample chamber | 'Z' | Nominal Volume |
Number polierte |
||||
| Weite | Länge | Höhe | Weite | Länge | Höhe | Dimension | ||||
| Nr | mm | mm | mm | mm | mm | mm | mm | mm | ml | Fenster |
| 73.65/Q | 1 | 12.5 | 12.5 | 38.5/45 | 6.5 | 1 | 11 | 8.5, 15, 20 | 0.072 | 2 |
| 73.65/Q | 2 | 12.5 | 12.5 | 38.5/45 | 6.5 | 2 | 11 | 8.5, 15, 20 | 0.144 | 2 |
| 73.65/Q | 5 | 12.5 | 12.5 | 38.5/45 | 6.5 | 5 | 11 | 8.5, 15, 20 | 0.360 | 2 |
| 73.65/Q | 10 | 12.5 | 12.5 | 38.5/45 | 6.5 | 10 | 11 | 8.5, 15, 20 | 0.720 | 2 |
| 73.65/Q | 20 | 12.5 | 22.5 | 38.5/45 | 6.5 | 20 | 11 | 8.5, 15, 20 | 1.440 | 2 |
| 73.65/Q | 40 | 12.5 | 42.5 | 38.5/45 | 6.5 | 40 | 11 | 8.5, 15, 20 | 2.880 | 2 |
| 73.65/Q | 50 | 12.5 | 52.5 | 38.5/45 | 6.5 | 50 | 11 | 8.5, 15, 20 | 3.600 | 2 |
| 73.65/Q | 100 | 12.5 | 102.5 | 38.5/45 | 6.5 | 100 | 11 | 8.5, 15, 20 | 7.200 | 2 |
| 73.65/SX | 10 | 12.5 | 12.5 | 38.5/45 | 6.5 | 10 | 11 | 8.5, 15, 20 | 0.720 | 2 |
