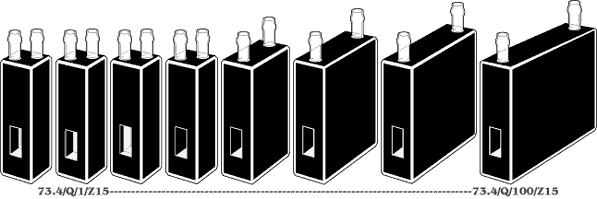

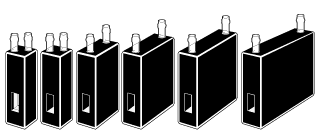

Starna ® Durchflußküvetten, Type 73.4 series Semi-Micro, Medium aperture
 |
SOG = Optisches
Spezialglas 320 - 2500nm |
|
Q = Fernes UV Quarz 170 - 2700nm |
||
SX = Fernes UV - IR Quarz (wasserfrei) 170 - 3500nm |
||
Path lengths :1, 2, 5, 10, 20, 40, 50, 100 mm |
||
|
Available 'Z' : 8.5, 15 & 20 mm |
||
|
Aperture dimensions:4 mm wide x 11 mm high |
||
 |
 |
|
|
"Z" dimension is critical as the cell sample compartment must be correctly
aligned in the instrument light beam, see chart below |
||
|
Fully masked cell with rectangular aperture, optimized for the best
flow characteristics for instruments with a narrow beam geometry of up to 3.5 mm |
||
|
Connections:Glass or quartz tubulations as appropriate, permanently
fused to the top of the cell, allow for simple and secure push on or sleeved connections using flexible tubing such as silicone rubber or PVC |
||
| Starna Typ |
Schicht-dicke | Externe | Sample Chamber | 'Z' | Nominal Volume | Number polierte | ||||
| Weite | Länge | Höhe | Weite | Länge | Höhe | Dimension | ||||
| Nr | mm | mm | mm | mm | mm | mm | mm | mm | ml | Fenster |
| 73.4/Q | 1 | 12.5 | 12.5 | 45 | 4 | 1 | 11 | 8.5, 15, 20 | 0.045 | 2 |
| 73.4/Q | 2 | 12.5 | 12.5 | 45 | 4 | 2 | 11 | 8.5, 15, 20 | 0.090 | 2 |
| 73.4/Q | 5 | 12.5 | 12.5 | 45 | 4 | 5 | 11 | 8.5, 15, 20 | 0.225 | 2 |
| 73.4/Q | 10 | 12.5 | 12.5 | 45 | 4 | 10 | 11 | 8.5, 15, 20 | 0.450 | 2 |
| 73.4/Q | 20 | 12.5 | 22.5 | 45 | 4 | 20 | 11 | 8.5, 15, 20 | 0.900 | 2 |
| 73.4/Q | 40 | 12.5 | 22.5 | 45 | 4 | 40 | 11 | 8.5, 15, 20 | 1.800 | 2 |
| 73.4/Q | 50 | 12.5 | 52.5 | 45 | 4 | 50 | 11 | 8.5, 15, 20 | 2.250 | 2 |
| 73.4/Q | 100 | 12.5 | 102.5 | 45 | 4 | 100 | 11 | 8.5, 15, 20 | 4,500 | 2 |
| 73.4/SOG | 10 | 12.5 | 12.5 | 45 | 4 | 10 | 11 | 8.5, 15, 20 | 0.450 | 2 |
| 73.4/SX | 10 | 12.5 | 12.5 | 45 | 4 | 10 | 11 | 8.5, 15, 20 | 0.450 | 2 |
