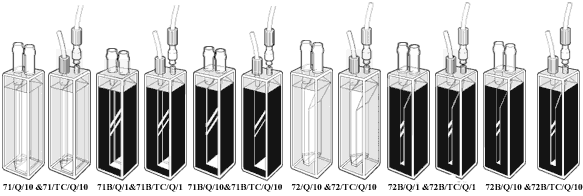

Starna® Durchflußküvetten, standard and semi-micro
SOG = Optisches
Spezialglas 320 - 2500nm |
Q = Fernes
UV Quarz 170 - 2700nm |
 |
Clear windows:
Two |
Path lengths available: 1, 10 mm |
|
|
Tubilations intended for push-on flexible tubeing & threaded connectors
(TC) |
||
|
Long sample compartment suitable for all Z heights clear wall &
self masking black walled (B) |
||
| Starna Typ |
Schicht- dicke |
Window Material | Externe | Sample Chamber | Nominal Volume | ||||
| Weite | Länge | Höhe | Weite | Länge | Höhe | ||||
| Nr | mm | Choice | mm | mm | mm | mm | mm | mm | ml |
| 71 | 10 | SOG/Q | 12.5 | 12.5 | 48 | 7 | 10 | 45 | 3.000 |
| 71/TC | 10 | Q | 12.5 | 12.5 | 48 | 7 | 10 | 45 | 3.000 |
| 72 | 10 | SOG/Q | 12.5 | 12.5 | 48 | 4 | 10 | 45 | 1.800 |
| 72/TC | 10 | Q | 12.5 | 12.5 | 48 | 4 | 10 | 45 | 1.800 |
| 71B | 1 | SOG/Q | 12.5 | 12.5 | 48 | 7 | 1 | 45 | 0.300 |
| 71B/TC | 1 | Q | 12.5 | 12.5 | 48 | 7 | 1 | 45 | 0.300 |
| 71B | 10 | SOG/Q | 12.5 | 12.5 | 48 | 7 | 10 | 45 | 3.000 |
| 71B/TC | 10 | Q | 12.5 | 12.5 | 48 | 7 | 10 | 45 | 3.000 |
| 72B | 1 | SOG/Q | 12.5 | 12.5 | 48 | 4 | 10 | 45 | 0.180 |
| 72B/TC | 1 | Q | 12.5 | 12.5 | 48 | 4 | 10 | 45 | 0.180 |
| 72B | 10 | SOG/Q | 12.5 | 12.5 | 48 | 4 | 10 | 45 | 1.800 |
| 72B/TC | 10 | Q | 12.5 | 12.5 | 48 | 4 | 10 | 45 | 1.800 |
