SOG
= Optisches Spezialglas 320 - 2500nm |
Q
= Fernes UV Quarz 170 - 2700nm |
SX = Fernes UV - IR Quarz (wasserfrei) 170 - 3500nm |
| |
Two Clear windows |
|
Pathlengths:10 mm |
|
'Z' dimensions: 8.5,& 15 mm |
|
M6 screw Connectors |
|
(see
accessories ) |
| |
|
|
|

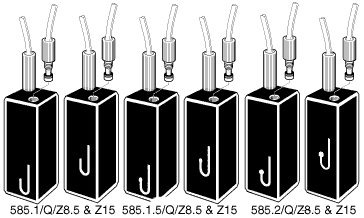

Fully masked cell with round aperture, dimensions see charts below, optimized for |
|
the best flow characteristics for instruments with a narrow beam geometry |
|
Designed for
use in spectrophotometers with a small collimated or focused beam |
|
"Z" dimension is critical as the cell sample compartment must be correctly
aligned in |
|
the instrument light beam, |
|
| Starna
Typ
|
Glas-
material
|
Schicht-
dicke |
Externe
|
Sample
Chamber |
'Z'
Dimension
|
Nominal
Volume
|
| Weite
|
Länge
|
Höhe
|
Diameter
|
Länge
|
| Nr
|
g
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
ml
|
| 585.1
|
SOG/Q
|
10
|
12.5
|
12.5
|
35
|
1
|
10
|
8.5,
15, 20 |
0.008
|
| 585.15
|
SOG/Q
|
10
|
12.5
|
12.5
|
35
|
1.5
|
10
|
8.5,
15, 20 |
0.018
|
| 585.2
|
SOG/Q/SX
|
10
|
12.5
|
12.5
|
35
|
2
|
10
|
8.5,
15, 20 |
0.032
|
|
