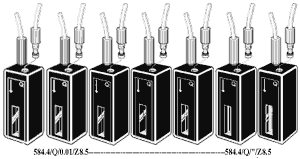

Starna® Durchflußküvetten, Type 584.4 dissolution. short path length, Long aperture
 |
|
||||||||||||||||
Q
= Fernes UV Quarz 170 - 2700nm
Fully masked
cell with rectangular aperture, optimized for the best flow characteristics
for instruments with a narrow beam geometry |
|
|
Path lengths
of 0.5mm or less incorporate by-pass tubes to avoid back pressure
and assist laminar flow through the sample compartment |
|
| Profiled sample compartment to optimise flow characteristics, reduces carry over and bubble retention. |
| Starna typ |
Schicht- dicke |
Externe | SampleChamber | 'Z'
Dimension |
Nominal Volume | Number polierte | |||
| Weite | Länge | Höhe | Weite | Höhe | |||||
| Nr | mm | mm | mm | mm | mm | mm | mm | ml | Fenster |
| 584.4/Q | 0.01 | 12.5 | 12.5 | 35 | 4 | 17.5 | 8.5, 15, 20 | 0.036 | 2 |
| 584.4/Q | 0.05 | 12.5 | 12.5 | 35 | 4 | 17.5 | 8.5, 15, 20 | 0.039 | 2 |
| 584.4/Q | 0.1 | 12.5 | 12.5 | 35 | 4 | 17.5 | 8.5, 15, 20 | 0.041 | 2 |
| 584.4/Q | 0.2 | 12.5 | 12.5 | 35 | 4 | 17.5 | 8.5, 15, 20 | 00047 | 2 |
| 584.4/Q | 0.5 | 12.5 | 12.5 | 35 | 4 | 17.5 | 8.5, 15, 20 | 0.095 | 2 |
| 584.4/Q | 1 | 12.5 | 12.5 | 35 | 4 | 17.5 | 8.5, 15, 20 | 0.120 | 2 |
| 584.4/Q | 2 | 12.5 | 12.5 | 35 | 4 | 17.5 | 8.5, 15, 20 | 0.240 | 2 |
