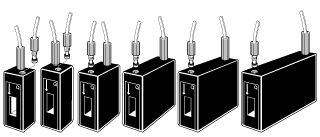

Starna® Durchflußküvetten, Type 583.4 series Semi-Micro, Medium aperture, screw in connectors
 |
Q = Fernes
UV Quarz 170 - 2700nm |
|
Available 'Z' dimensions:8.5, 15 & 20mm |
||
|
Path lengths:
5, 10, 20, 40, 50, 100 mm |
||
|
Clear windows:2 |
||
|
Aperture dimensions:4 mm wide x 11 mm high |
||
 |
 |
|
|
Physical Configuration:Fully
masked cell with rectangular aperture, dimensions see charts below, optimized for the best flow characteristics for instruments with a narrow beam geometry |
||
|
Instrument:Designed
for use in spectrophotometers with a beam width up to 3 mm |
||
|
Usage note:"Z"
dimension is critical as the cell compartment must be correctly aligned in the instrument light beam, see chart below |
||
|
Connections:The
internally threaded jacket matches the M6 threaded connectors supplied with the cell, to make a secure connection tested to 75 psi (see accessories for spares) |
||
| Starna Typ |
Schicht-dicke | Externe | Interne | 'Z' Dimension |
Nom
Vol |
Number polierte | |||
| Width | Length | Height | Width | Height | |||||
| Number | mm | mm | mm | mm | mm | mm | mm | ml | Fenster |
| 584.4/Q | 0.01 | 12.5 | 12.5 | 35 | 4 | 17.5 | 8.5, 15, 20 | 0.036 | 2 |
| 584.4/Q | 0.05 | 12.5 | 12.5 | 35 | 4 | 17.5 | 8.5, 15, 20 | 0.039 | 2 |
| 584.4/Q | 0.1 | 12.5 | 12.5 | 35 | 4 | 17.5 | 8.5, 15, 20 | 0.041 | 2 |
| 584.4/Q | 0.2 | 12.5 | 12.5 | 35 | 4 | 17.5 | 8.5, 15, 20 | 00047 | 2 |
| 584.4/Q | 0.5 | 12.5 | 12.5 | 35 | 4 | 17.5 | 8.5, 15, 20 | 0.095 | 2 |
| 584.4/Q | 1 | 12.5 | 12.5 | 35 | 4 | 17.5 | 8.5, 15, 20 | 0.120 | 2 |
| 584.4/Q | 2 | 12.5 | 12.5 | 35 | 4 | 17.5 | 8.5, 15, 20 | 0.240 | 2 |
