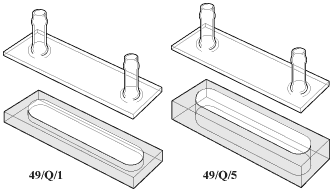

Starna® Durchflußküvetten, Short part Länge Demountable
 |
|
||||||||||||||||
G
= Optisches Glas 334 - 2500nm
Q
= Fernes UV Quarz 170 - 2700nm
2 Clear windows:
| Starna Typ |
Schicht-dicke | Window Material |
Externe | Sample Chamber | Nominal Volume |
||||
| Weite | Länge | Höhe | Weite | Länge | Höhe | ||||
| Nr | mm | mm | mm | mm | mm | mm | mm | ml | |
| 49 | 0.01 | Q | 12.5 | 2.6 | 45 | 8 | 0.01 | 40 | 0.003 |
| 49 | 0.1 | Q | 12.5 | 2.6 | 45 | 8 | 0.1 | 40 | 0.030 |
| 49 | 0.2 | Q | 12.5 | 2.7 | 45 | 8 | 0.2 | 40 | 0.060 |
| 49 | 0.5 | Q | 12.5 | 3.0 | 45 | 8 | 0.5 | 40 | 0.150 |
| 49 | 1 | G/Q | 12.5 | 3.5 | 45 | 8 | 1 | 40 | 0.300 |
| 49 | 2 | G/Q | 12.5 | 4.5 | 45 | 8 | 2 | 40 | 0.600 |
| 49 | 5 | G/Q | 12.5 | 7.5 | 45 | 8 | 5 | 40 | 1.560 |
