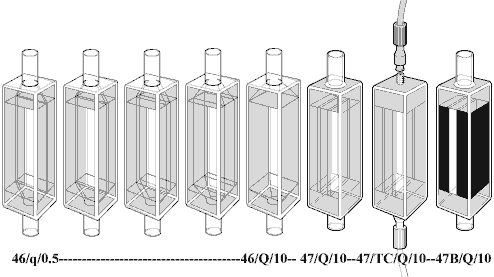

Starna® Durchflußküvetten, in line
|
|
Two Clear windows |
 |
Pathlengths
0.5, 1, 2, 5 & 10mmConnections:Tubulations 2mm I,D. 4mm O,D 10mm Long (see accessories for spares)
| Starna Typ | Schicht -dicke |
Externe | Interne Weite | Nominal Volume | ||
| Weite | Länge | Höhe | ||||
| Nr | mm | mm | mm | mm | mm | ml |
| 46/Q | 0.5 | 12.5 | 12.5 | 65 | 10 | 0.185 |
| 46/Q | 1 | 12.5 | 12.5 | 65 | 10 | 0.370 |
| 46/Q | 2 | 12.5 | 12.5 | 65 | 10 | 0.740 |
| 46/Q | 5 | 12.5 | 12.5 | 65 | 10 | 1.850 |
| 46/Q | 10 | 12.5 | 12.5 | 65 | 10 | 3.700 |
| 47/Q | 10 | 12.5 | 12.5 | 65 | 4 | 1.480 |
| 47/TC/Q | 10 | 12.5 | 12.5 | 65 | 4 | 1.480 |
| 47B/Q | 10 | 12.5 | 12.5 | 65 | 4 | 1.480 |
