Starna® Zylindrische Küvetten, Large Diameter
 |
|
||||||||||||||||
SOG
= Optisches Spezialglas 320 - 2500nm
PX = Borofloat 330 - 2500nm
Q
= Fernes UV Quarz 170 - 2700nm
I
= Nahes Infrarot Quarz 220 3800nm
supplied with PTFE stopper with "ground type" fitting.| Starna Typ | Glas -material |
Schicht-dicke | Externe | Interne | Nom Vol |
polierte g |
||
| Diameter | Länge | Diameter | Länge | |||||
| Nr | erhältich in | mm | mm | mm | mm | mm | ml | Fenster |

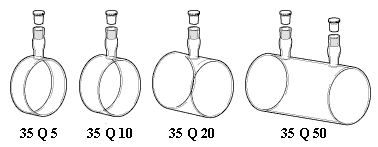

| 35 | SOG/PX/Q/I | 2 | 50 | 22.5 | 47 | 2 | 3.40 | 2 |
| 35 | SOG/PX/Q/I | 5 | 50 | 22.5 | 47 | 5 | 8.50 | 2 |
| 35 | SOG/PX/Q/I | 10 | 50 | 22.5 | 47 | 10 | 17.00 | 2 |
| 35 | SOG/PX/Q/I | 20 | 50 | 22.5 | 47 | 20 | 35.00 | 2 |
| 35 | SOG/PX/Q/I | 50 | 50 | 22.5 | 47 | 50 | 86.00 | 2 |
