Q
= Fernes UV Quarz 170 - 2700nm |
| |
3 polished
windows |
|
1, 1.
5 & 3 mm Pathlengths |
|
Available
'Z' 8.5, 15 mm |
|
Designed
for use in spectrophotometers with a beam
width up to 3.5 mm |
|
Stainless
steel inlet/outlet tubes, permanently fused to
the top of the cell. |
| |
|
|
|
"Z"
dimension is critical as the cell sample compartment must be correctly aligned
in the instrument
light beam,

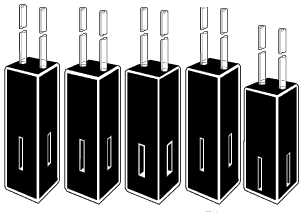

Fully masked
cell with rectangular aperture, dimensions see charts below, optimized for
the best flow characteristics for instruments with
a narrow beam geometry
Starna
Catalog |
Path
Length
|
Exterior
Height
|
Sample
chamber |
'Z'
Dimension
|
Nominal
Volume
|
Number
Polished
|
| Width
|
Length
|
Height
|
| Number
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
ml
|
Windows
|
| 73.1F/ss/Q
|
1
|
45
|
1
|
1
|
11
|
8.5
|
0.008
|
3
|
| 73.1F/ss/Q
|
1
|
45
|
1
|
1
|
11
|
15
|
0.008
|
3
|
| 73.15F/ss/Q
|
1.5
|
45
|
1.5
|
1.5
|
11
|
8.5
|
0.018
|
3
|
| 73.15F/ss/Q
|
1.5
|
45
|
1.5
|
1.5
|
11
|
15
|
0.018
|
3
|
| 73.3F/ss/Q
|
3
|
45
|
3
|
3
|
11
|
8.5
|
0.40
|
3
|
| 73.3F/ss/Q
|
3
|
45
|
3
|
3
|
11
|
15
|
0.40
|
3
|
|
