Starna® Kolorimeter-Küvetten für Hunter, ACS, Data Color and others
 |
G = Optisches Glas 334 - 2500nm |
Two Clear windows |
Open top, no cover |
|
Pathlengths
available:5, 10, 20 & 50mm |
|
|
Glass cell
with wide, tall window,& U shape wall construction |
|
| Starna Catalogue |
Path Length | Exterior | Interior | Nominal Volume | Number Polished | |||
| Width | Length | Height | Width | Length | ||||
| Number | mm | mm | mm | mm | mm | mm | ml | Windows |

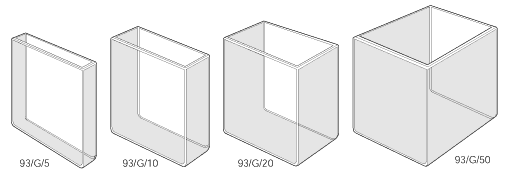

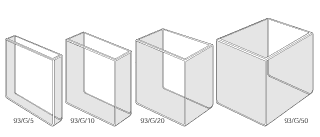

| 93/G/5 | 5 | 55 | 9 | 56 | 51 | 5 | 12.5 | 2 |
| 93/G/10 | 10 | 55 | 14 | 56 | 51 | 10 | 25 | 2 |
| 93/G/20 | 20 | 55 | 24 | 56 | 51 | 20 | 50 | 2 |
| 93/G/50 | 50 | 55 | 54 | 56 | 51 | 50 | 125 | 2 |
